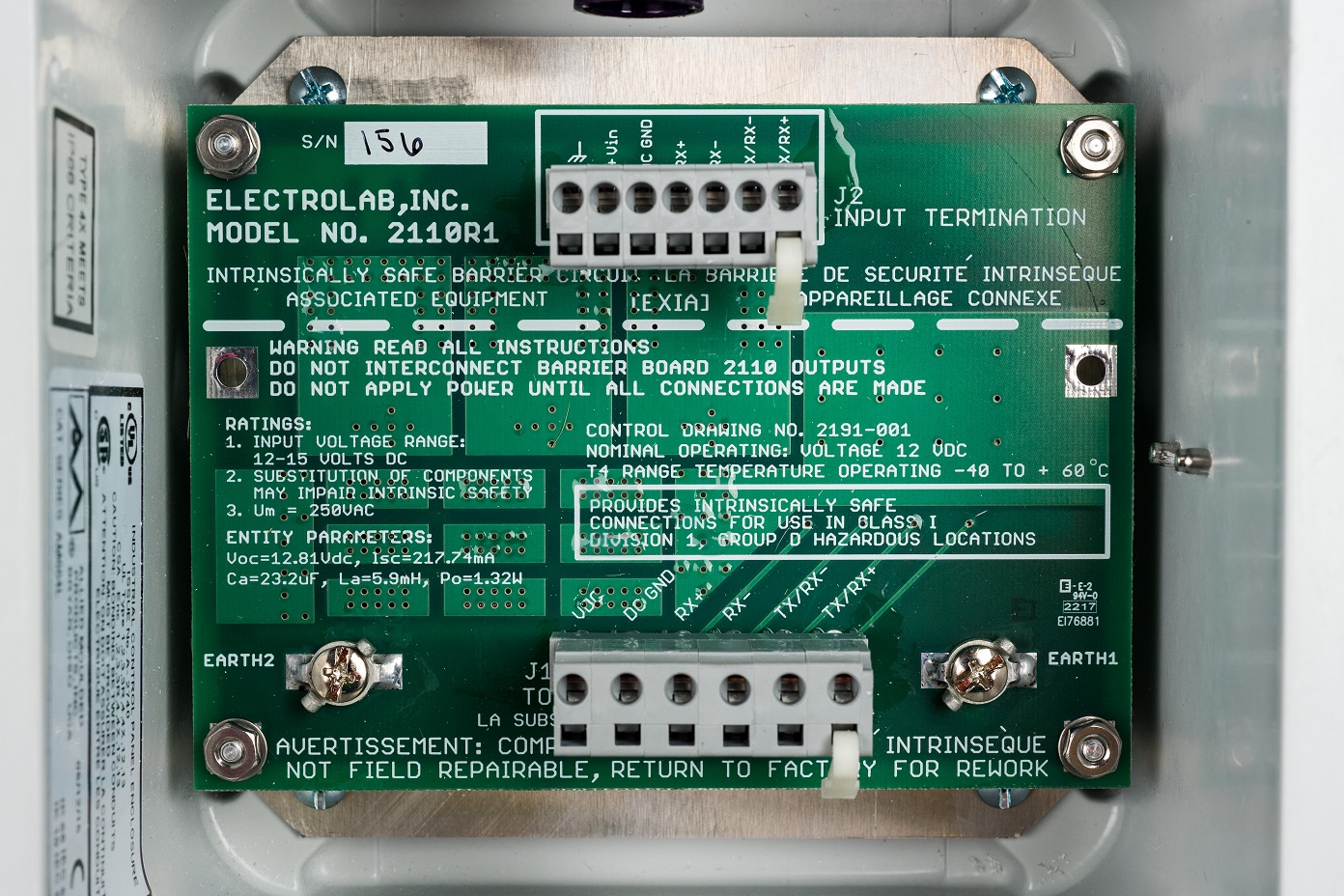

Model 2110R1 Barrier Device

Model 2110R1 Barrier Device

Categories: DLS Optional Equipment

The Model 2110R1 Barrier Device is an intrinsically safe device that actively limits current and voltage to protect the Model 2100 Digital Level Sensors (Model 2100 DLS, RU Flex 2100 DLS, and Model 2100 DLS with High Level Shut-In) from power spikes and to maintain the sensor’s intrinsic safety. The device conforms to UL 913 Intrinsically Safe Apparatus and Associated Apparatus for use in Class I, Division 1 hazardous locations.


Request for Quote

(Please include all of the specifications from the Configuration Options below on your RFQ)

The Model 2110R1 Barrier Device is an intrinsically safe device that actively limits current and voltage to protect the Model 2100 Digital Level Sensors (Model 2100 DLS, RU Flex 2100 DLS, and Model 2100 DLS with High Level Shut-In) from power spikes and to maintain the sensor’s intrinsic safety. The device conforms to UL 913 Intrinsically Safe Apparatus and Associated Apparatus for use in Class I, Division 1 hazardous locations.

FEATURES

• Two-part connectors for ease of attaching and removing wires outside the box

• One unit handles up to five Digital Level Sensors

• Spring loaded connectors to maintain contact pressure

• Highly reliable SMD components

SPECIFICATIONS

Input Voltage: 12 - 15 VDC

Input Current: 100 mA max

Operating temperature range: -40 °C to +60 °C

Electrical Parameters

Max Output Voltage: 12.81 VDC

Nominal I/O Voltage Drop: 5 VDC

Max Output Current: 86 mA

Dimensions

Housing size: 7.7" x 7.7" square, 5.5" high

Mounting Plate Size: 5.5" x 5"

PCB Size: 5.5" x 4.0"

Product Classification

Class I, Division 1, Group D

Temperature Rating T4

Product Approval

UL 913 CSA C22.2, No. 157
